💡 Apa itu Router ?

Router adalah perangkat jaringan yang meneruskan paket data antara jaringan komputer. Router terhubung dengan setidaknya dua jaringan, biasanya dua LAN (Local Area Network) atau WAN (Wide Area Network) atau LAN dan jaringan ISP (Internet Service Provider) nya. Router terletak di gerbang, tempat di mana dua atau lebih jaringan terhubung.

✳️ ToDo List Oprek

✳️ Router Bolt dengan Modem LTE

Modem LTE adalah perangkat yang menyediakan konektivitas data nirkabel broadband. Ia menggunakan standar Long-Term Evolution (LTE) untuk terhubung ke internet, yang merupakan jaringan data kecepatan tinggi yang digunakan oleh banyak operator seluler di seluruh dunia. Modem LTE sering digunakan sebagai koneksi internet cadangan atau dalam situasi di mana internet kabel tidak tersedia. Mereka dapat digunakan untuk menyediakan akses internet ke satu perangkat atau untuk membuat jaringan nirkabel yang dapat diakses oleh beberapa perangkat.

Bolt adalah perusahaan telekomunikasi di Indonesia yang menyediakan layanan internet 4G LTE. Mereka menawarkan berbagai paket dan perangkat, termasuk router dengan modem LTE bawaan yang dapat digunakan untuk membuat jaringan nirkabel. BL-100 adalah salah satu router tersebut yang tersedia untuk dibeli.

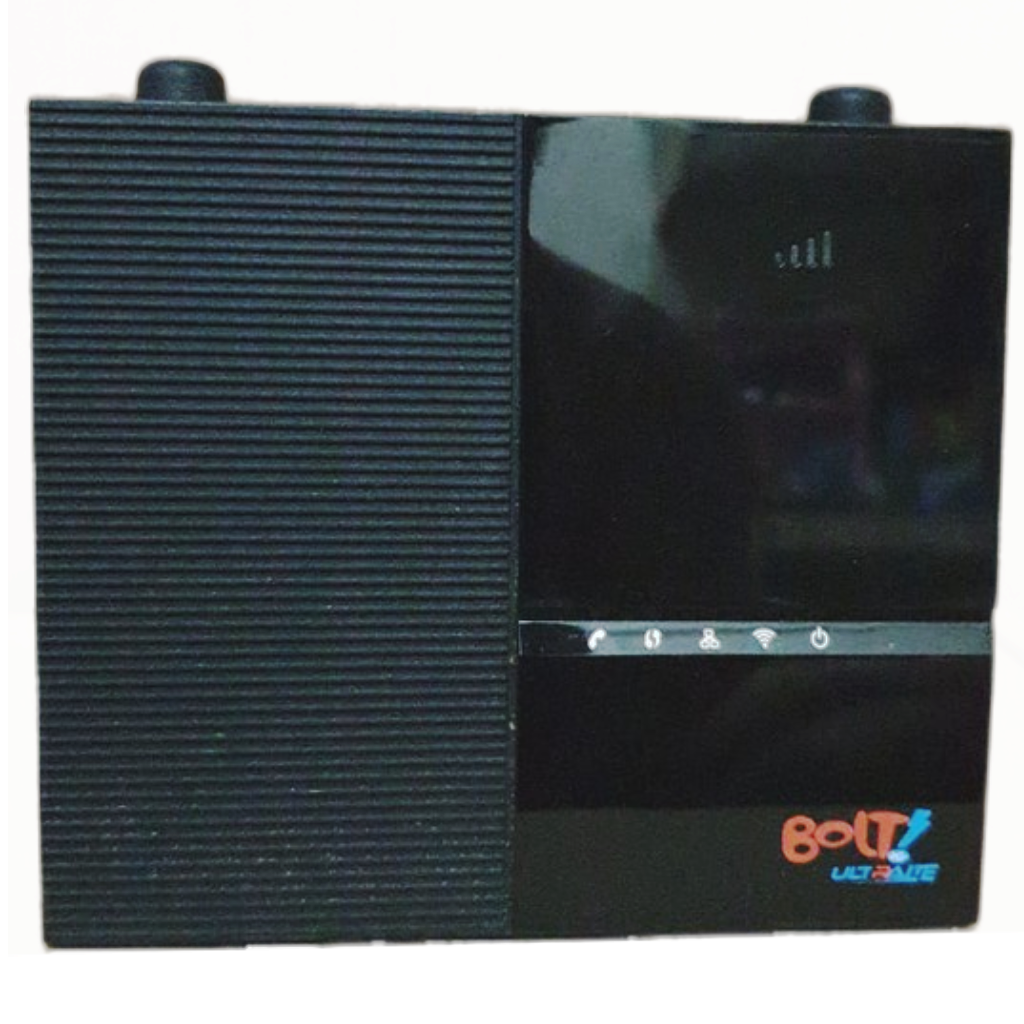

Gambar Bolt BL-100

Spesifikasi Bolt BL-100

ChipsetMediaTek MT7620A ver 2, eco 6
RAM64 MB
BootloaderU Boot
FlashWinbond W25Q128BV (16 MB)
Port2x 10/100 Ethernet, 1x RJ-11 VoIP
ModemQualcomm LTE B40 (2300 Mhz) VID:05c6 PID:9026
WirelessInternal MT7620A (2.4 Ghz) & Mediatek MT7662E (5.8 Ghz)
SwitchMediaTek MT7620A built-in 5-port 10/100M switch
VoltageDC 12V 1A
Antenna Port2x External Antenna, 2 LTE U.FL , 2 WiFi U.FL
Serial PortYes, 3.3 V TTL, Baud 57600 8N1

Dengan menggunakan chipset mt7620 modem bolt bl 100 merupakan modem yang cukup mumpuni, karena sudah dilengkapi dengan modem lte + wireless dual band yang dapat menjadikan router ini sebagai andalan router rumahan. Selain itu chipset mt7620 sudah mendapatkan dukungan dari openwrt dan komunitas opreker lainnya sehingga kita bisa dengan mudah melakukan porting ke router ini.

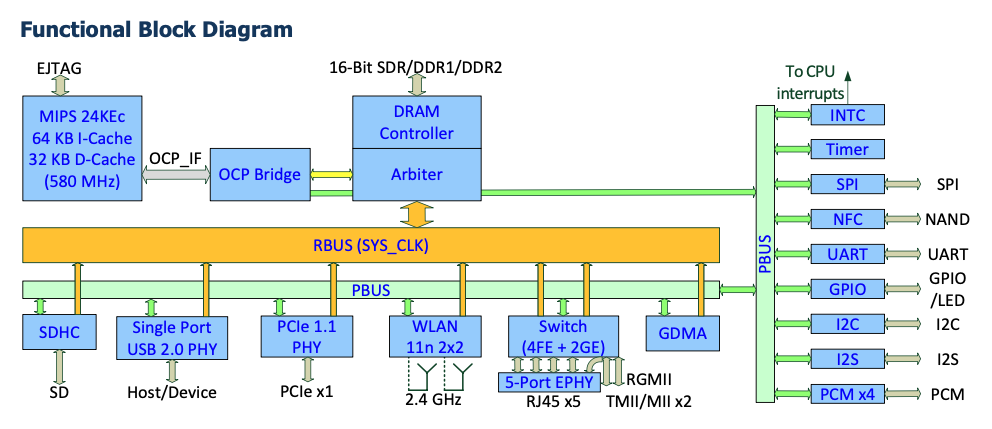

Block Diagram MT7620

Gambar diatas merupakan datasheet chipset MT7620 [LINK]. Chipset MT7620 didalamnya dilengkapi dengan beberapa fitur diataranya USB, SDHC, PCIe, Wifi, Switch, SPI, UART, etc. Fitur ini merupakan fitur utama dari chipset tersebut dan menurut saya fitur tersebut sangat lengkap jika fungsinya ingin digunakan pada embedded device seperti router. Karena fitur utama yang digunakan biasanya hanya Ethernet, WIFI, dan port USB untuk LTE.

MT7620 sendiri menggunakan arsitektur MIPS. MIPS adalah RISC (reduced instruction set computing) arsitektur set instruksi yang dikembangkan oleh beberapa peneliti Stanford pada pertengahan 1980-an. Awalnya, nama tersebut merupakan singkatan dari Microprocessor without Interlocked Pipeline Stages, tetapi interlock antara tahapan pipeline akhirnya diperkenalkan kembali, hal ini karena alasan kinerja karena prosesor lain menjadi lebih maju.

Arsitektur MIPS memainkan peran utama dalam pasar prosesor tertanam (Embedded) dan ratusan pelanggan terus menggunakannya secara komersial, termasuk Teknologi Microchip, Mobileye, dan MediaTek. Pengaplikasian MIPS pada umumnya adalah set-top box, gateway internet, dan router.

Foto PCB Bolt BL-100

Berikut adalah beberapa foto Mainboard/PCB bolt BL100. Gambar dibawah dapat digunakan untuk referensi opreker/modding.

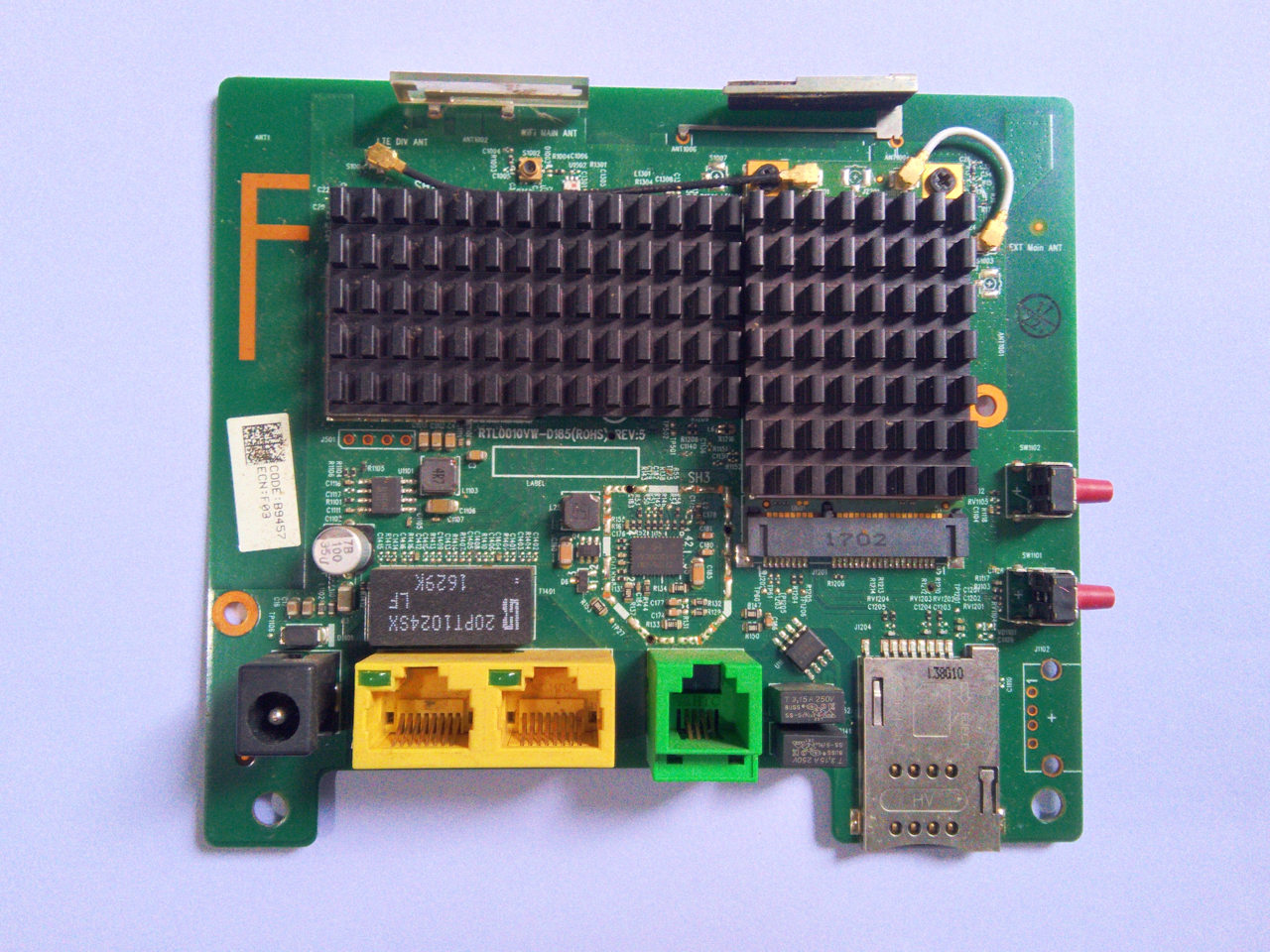

PCB Top Side

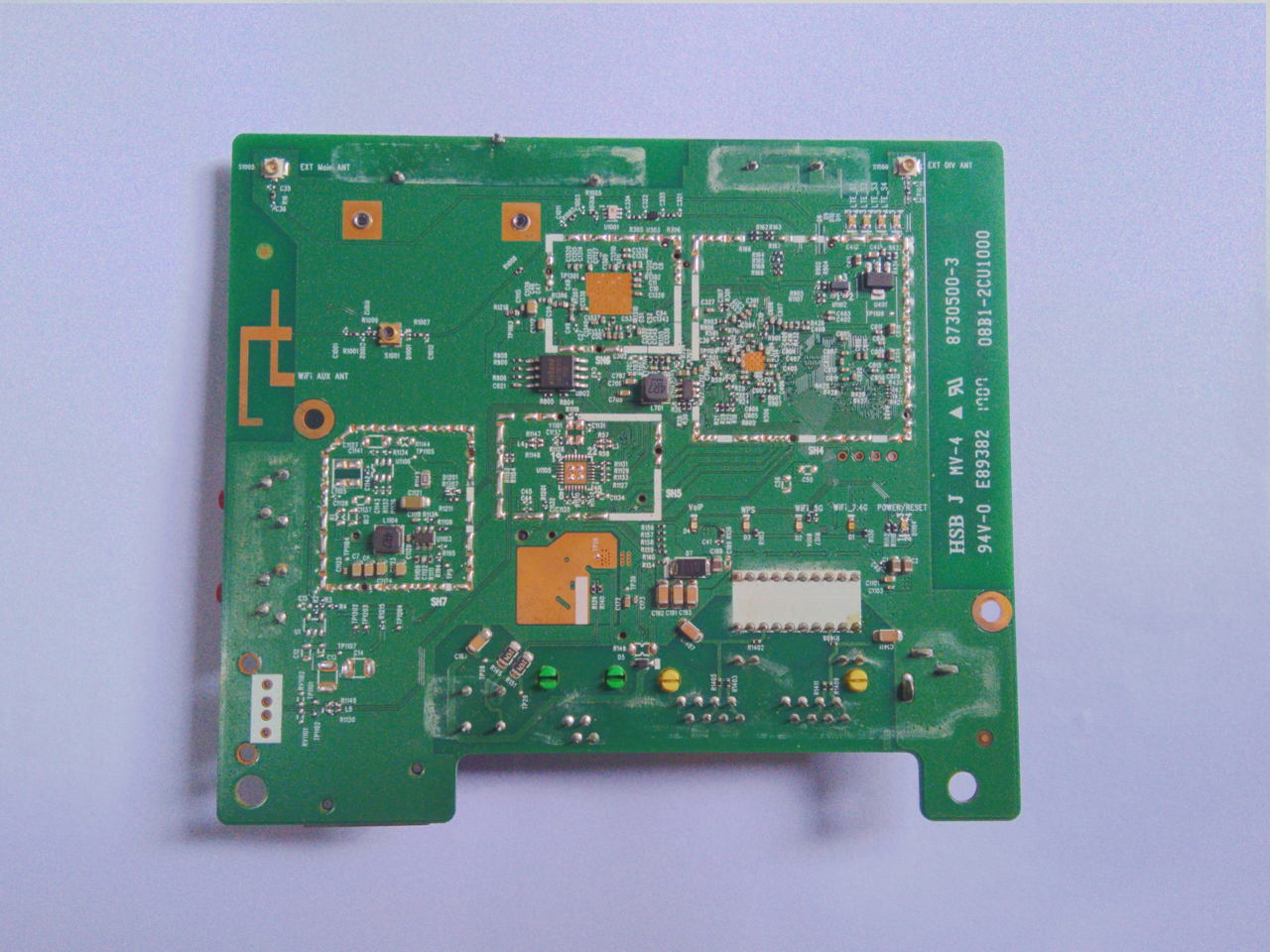

PCB Bottom Side

Informasi Tambahan

Cpu Info

# cat /proc/cpuinfo
system type             : MT7620
processor               : 0
cpu model               : MIPS 24Kc V5.0
BogoMIPS                : 385.84
wait instruction        : yes
microsecond timers      : yes
tlb_entries             : 32
extra interrupt vector  : yes
hardware watchpoint     : yes, count: 4, address/irw mask: [0x0004, 0x0b7c, 0x0ff8, 0x03c3]
ASEs implemented        : mips16 dsp
shadow register sets    : 1
core                    : 0
VCED exceptions         : not available
VCEI exceptions         : not available

Partition Information

# cat /proc/mtd
dev:    size   erasesize  name
mtd0: 01000000 00010000 "ALL"
mtd1: 00030000 00010000 "Bootloader"
mtd2: 00010000 00010000 "Config"
mtd3: 00010000 00010000 "Factory"
mtd4: 009b0000 00010000 "Kernel"
mtd5: 005f0000 00010000 "Kernel2"
mtd6: 00010000 00010000 "SmsInfo"

Kernel Information

# cat /proc/version
Linux version 2.6.36 (daniel@test-virtual-machine) (gcc version 3.4.2) #1 PREEMPT Mon Oct 16 17:44:26 CST 2017

Free Memory

# free
              total         used         free       shared      buffers
  Mem:        58484        48016        10468            0            0
 Swap:            0            0            0
Total:        58484        48016        10468

Top Process

# top
CPU:   8% usr   8% sys   0% nic  83% idle   0% io   0% irq   0% sirq
Load average: 1.22 1.36 1.44 1/71 31850
  PID  PPID USER     STAT   VSZ %VSZ %CPU COMMAND
31847 23639 admin    R     2012   3%   8% top
 4381  4377 admin    S     4084   7%   0% lighttpd -D -f /etc_ro/lighttpd/lightt
 5488  5487 admin    S     3512   6%   0% AskeyCM
 5504  5487 admin    S     3512   6%   0% AskeyCM
 5511  5487 admin    S     3512   6%   0% AskeyCM
 5516  5487 admin    S     3512   6%   0% AskeyCM
 4707     1 admin    S     3512   6%   0% AskeyCM
 5487  4707 admin    S     3512   6%   0% AskeyCM
 5490  5487 admin    S     3512   6%   0% AskeyCM
 5505  5487 admin    S     3512   6%   0% AskeyCM
 5491  5487 admin    S     3512   6%   0% AskeyCM
 5512  5487 admin    S     3512   6%   0% AskeyCM
 5052  5039 admin    S     2744   5%   0% /usr/d2/vapp -i 192.168.1.123
 5051  5039 admin    S     2744   5%   0% /usr/d2/vapp -i 192.168.1.123
 4773     1 admin    S     2744   5%   0% /usr/d2/vapp -i 192.168.1.123
 5047  5039 admin    S     2744   5%   0% /usr/d2/vapp -i 192.168.1.123
 5045  5039 admin    S     2744   5%   0% /usr/d2/vapp -i 192.168.1.123
 5050  5039 admin    S     2744   5%   0% /usr/d2/vapp -i 192.168.1.123
 5041  5039 admin    S     2744   5%   0% /usr/d2/vapp -i 192.168.1.123
^C042  5039 admin    S     2744   5%   0% /usr/d2/vapp -i 192.168.1.123

Log Serial




U-Boot 1.1.3 (Jun  8 2016 - 16:40:15)


Board:  APSoC DRAM:  64 MB

relocate_code Pointer at: 83fb8000

enable ephy clock...done. rf reg 29 = 5

SSC disabled.

spi_wait_nsec: 29

spi device id: ef 40 18 0 0 (40180000)

find flash: W25Q128BV

raspi_read: from:30000 len:1000

*** Warning - bad CRC, using default environment


============================================

LTE Router Version: 2.0.5

--------------------------------------------

ASIC 7620_MP (Port5<->None)

DRAM component: 512 Mbits DDR, width 16

DRAM bus: 16 bit

Total memory: 64 MBytes

Flash component: 16 MBytes NOR Flash

Date:Jun  8 2016  Time:16:40:15

============================================

raspi_read: from:30000 len:10000

Erasing SPI Flash...

raspi_erase: offs:30000 len:10000

.

Writing to SPI Flash...

raspi_write: to:30000 len:10000

.

done

raspi_read: from:30000 len:10000

Erasing SPI Flash...

raspi_erase: offs:30000 len:10000

.

Writing to SPI Flash...

raspi_write: to:30000 len:10000

.

done

raspi_read: from:30000 len:10000

Erasing SPI Flash...

raspi_erase: offs:30000 len:10000

.

Writing to SPI Flash...

raspi_write: to:30000 len:10000

.

done

Release Version !

raspi_read: from:30000 len:10000

Erasing SPI Flash...

raspi_erase: offs:30000 len:10000

.

Writing to SPI Flash...

raspi_write: to:30000 len:10000

.

done

icache: sets:512, ways:4, linesz:32 ,total:65536

dcache: sets:256, ways:4, linesz:32 ,total:32768


 ##### The CPU freq = 580 MHZ ####

 estimate memory size =64 Mbytes



3: System Boot system code via Flash.

## Booting image at bc050000 ...

raspi_read: from:30000 len:10000

Erasing SPI Flash...

raspi_erase: offs:30000 len:10000

.

Writing to SPI Flash...

raspi_write: to:30000 len:10000

.

done

raspi_read: from:50000 len:40

   Image Name:   Linux Kernel Image

   Image Type:   MIPS Linux Kernel Image (lzma compressed)

   Data Size:    6314347 Bytes =  6 MB

   Load Address: 80000000

   Entry Point:  8000c4b0

raspi_read: from:50040 len:60596b

   Verifying Checksum ... OK

   Uncompressing Kernel Image ... OK

No initrd

## Transferring control to Linux (at address 8000c4b0) ...

## Giving linux memsize in MB, 64


Starting kernel ...



LINUX started...

 THIS IS ASIC
Linux version 2.6.36 (daniel@test-virtual-machine) (gcc version 3.4.2) #1 PREEMPT Mon Oct 16 17:44:26 CST 2017

 The CPU feqenuce set to 580 MHz

 MIPS CPU sleep mode enabled.
 PCIE: bypass PCIe DLL.
 PCIE: Elastic buffer control: Addr:0x68 -> 0xB4
 disable all power about PCIe
CPU revision is: 00019650 (MIPS 24Kc)
Software DMA cache coherency
Determined physical RAM map:
 memory: 04000000 @ 00000000 (usable)
Initrd not found or empty - disabling initrd
Zone PFN ranges:
  Normal   0x00000000 -> 0x00004000
Movable zone start PFN for each node
early_node_map[1] active PFN ranges
    0: 0x00000000 -> 0x00004000
Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 16256
Kernel command line: console=ttyS1,57600n8 root=/dev/ram0 console=ttyS0
PID hash table entries: 256 (order: -2, 1024 bytes)
Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
Primary instruction cache 64kB, VIPT, , 4-waylinesize 32 bytes.
Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
Writing ErrCtl register=0007e6b8
Readback ErrCtl register=0007e6b8
Memory: 54196k/65536k available (4955k kernel code, 11340k reserved, 1227k data, 4288k init, 0k highmem)
NR_IRQS:128
console [ttyS1] enabled
Calibrating delay loop... 385.84 BogoMIPS (lpj=1929216)
pid_max: default: 32768 minimum: 301
Mount-cache hash table entries: 512
NET: Registered protocol family 16
RALINK_GPIOMODE = 141710
RALINK_GPIOMODE = 141710
PPLL_CFG1=0xe54000
MT7620 PPLL lock
PPLL_DRV =0x80080504
start PCIe register access
RALINK_RSTCTRL = 2400000
RALINK_CLKCFG1 = 75afffc0

*************** MT7620 PCIe RC mode *************
PCIE0 enabled
Port 0 N_FTS = 1b105000
init_rt2880pci done
bio: create slab <bio-0> at 0
vgaarb: loaded
SCSI subsystem initialized
usbcore: registered new interface driver usbfs
usbcore: registered new interface driver hub
usbcore: registered new device driver usb
pci 0000:00:00.0: BAR 0: can't assign mem (size 0x80000000)
pci 0000:00:00.0: BAR 8: assigned [mem 0x20000000-0x200fffff]
pci 0000:00:00.0: BAR 9: assigned [mem 0x20100000-0x201fffff pref]
pci 0000:00:00.0: BAR 1: assigned [mem 0x20200000-0x2020ffff]
pci 0000:00:00.0: BAR 1: set to [mem 0x20200000-0x2020ffff] (PCI address [0x20200000-0x2020ffff]
pci 0000:01:00.0: BAR 0: assigned [mem 0x20000000-0x200fffff 64bit]
pci 0000:01:00.0: BAR 0: set to [mem 0x20000000-0x200fffff 64bit] (PCI address [0x20000000-0x200fffff]
pci 0000:01:00.0: BAR 6: assigned [mem 0x20100000-0x2010ffff pref]
pci 0000:00:00.0: PCI bridge to [bus 01-01]
pci 0000:00:00.0:   bridge window [io  disabled]
pci 0000:00:00.0:   bridge window [mem 0x20000000-0x200fffff]
pci 0000:00:00.0:   bridge window [mem 0x20100000-0x201fffff pref]
BAR0 at slot 0 = 0
bus=0x0, slot = 0x0
res[0]->start = 0
res[0]->end = 0
res[1]->start = 20200000
res[1]->end = 2020ffff
res[2]->start = 0
res[2]->end = 0
res[3]->start = 0
res[3]->end = 0
res[4]->start = 0
res[4]->end = 0
res[5]->start = 0
res[5]->end = 0
bus=0x1, slot = 0x0
res[0]->start = 20000000
res[0]->end = 200fffff
res[1]->start = 0
res[1]->end = 0
res[2]->start = 0
res[2]->end = 0
res[3]->start = 0
res[3]->end = 0
res[4]->start = 0
res[4]->end = 0
res[5]->start = 0
res[5]->end = 0
Switching to clocksource Ralink Systick timer
NET: Registered protocol family 2
IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
TCP established hash table entries: 2048 (order: 2, 16384 bytes)
TCP bind hash table entries: 2048 (order: 1, 8192 bytes)
TCP: Hash tables configured (established 2048 bind 2048)
TCP reno registered
UDP hash table entries: 256 (order: 0, 4096 bytes)
UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
NET: Registered protocol family 1
Load Ralink Timer0 Module
Load Ralink Timer1 Module
RT3xxx EHCI/OHCI init.
fuse init (API version 7.15)
msgmni has been set to 105
Block layer SCSI generic (bsg) driver version 0.4 loaded (major 254)
io scheduler noop registered (default)
Set the GPIO 32 data 0x0000FEFF
get gpio Dir 2FF9
get gpio data EEF
Ralink gpio driver initialized
Serial: 8250/16550 driver, 2 ports, IRQ sharing disabled
serial8250: ttyS0 at MMIO 0x10000500 (irq = 37) is a 16550A
serial8250: ttyS1 at MMIO 0x10000c00 (irq = 12) is a 16550A
brd: module loaded
deice id : ef 40 18 0 0 (40180000)
W25Q128BV(ef 40180000) (16384 Kbytes)
mtd .name = raspi, .size = 0x01000000 (0M) .erasesize = 0x00000010 (0K) .numeraseregions = 65536
Creating 7 MTD partitions on "raspi":
0x000000000000-0x000001000000 : "ALL"
0x000000000000-0x000000030000 : "Bootloader"
0x000000030000-0x000000040000 : "Config"
0x000000040000-0x000000050000 : "Factory"
0x000000050000-0x000000a00000 : "Kernel"
0x000000a00000-0x000000ff0000 : "Kernel2"
0x000000ff0000-0x000001000000 : "SmsInfo"
rdm_major = 253
SMACCR1 -- : 0x0000e8d1
SMACCR0 -- : 0x1b075a79
Ralink APSoC Ethernet Driver Initilization. v3.1  256 rx/tx descriptors allocated, mtu = 1500!
SMACCR1 -- : 0x0000e8d1
SMACCR0 -- : 0x1b075a79
PROC INIT OK!
PPP generic driver version 2.4.2
PPP MPPE Compression module registered
NET: Registered protocol family 24
PPTP driver version 0.8.5
IMQ driver loaded successfully.
	Hooking IMQ after NAT on PREROUTING.
	Hooking IMQ before NAT on POSTROUTING.
usbcore: registered new interface driver cdc_ether
usbcore: registered new interface driver cdc_subset


=== pAd = c0282000, size = 2173688 ===

<-- RTMPAllocTxRxRingMemory, Status=0
<-- RTMPAllocAdapterBlock, Status=0
device_id =0x7662
==>rlt_wlan_chip_onoff(): OnOff:1, Reset= 1, pAd->WlanFunCtrl:0x0, Reg-WlanFunCtrl=0x20a
RtmpChipOpsEepromHook::e2p_type=0, inf_Type=5
RtmpEepromGetDefault::e2p_dafault=2
NVM is efuse and the information is too less to bring up the interface
Force to use Flash mode
NVM is FLASH mode (pAd->flash_offset = 0x48000)
get_dev_name_prefix(): dev_idx = 1, dev_name_prefix=rai


=== pAd = c0497000, size = 2173688 ===

<-- RTMPAllocTxRxRingMemory, Status=0
<-- RTMPAllocAdapterBlock, Status=0
RtmpChipOpsEepromHook::e2p_type=0, inf_Type=4
RtmpEepromGetDefault::e2p_dafault=2
NVM is FLASH mode (pAd->flash_offset = 0x40000)
get_dev_name_prefix(): dev_idx = 0, dev_name_prefix=ra
ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
rt3xxx-ehci rt3xxx-ehci: Ralink EHCI Host Controller
rt3xxx-ehci rt3xxx-ehci: new USB bus registered, assigned bus number 1
rt3xxx-ehci rt3xxx-ehci: irq 18, io mem 0x101c0000
rt3xxx-ehci rt3xxx-ehci: USB 0.0 started, EHCI 1.00
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 1 port detected
ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
rt3xxx-ohci rt3xxx-ohci: RT3xxx OHCI Controller
rt3xxx-ohci rt3xxx-ohci: new USB bus registered, assigned bus number 2
rt3xxx-ohci rt3xxx-ohci: irq 18, io mem 0x101c1000
hub 2-0:1.0: USB hub found
hub 2-0:1.0: 1 port detected
usbcore: registered new interface driver cdc_acm
cdc_acm: v0.26:USB Abstract Control Model driver for USB modems and ISDN adapters
Initializing USB Mass Storage driver...
usbcore: registered new interface driver usb-storage
USB Mass Storage support registered.
MTK MSDC device init.
msdc0 -> ops_get_cd return<0> <- msdc_ops_get_cd() : L<2317> PID<kworker/u:1><0x1a>
mtk-sd: MediaTek MT6575 MSDC Driver
GACT probability on
Mirror/redirect action on
Simple TC action Loaded
netem: version 1.2
u32 classifier
    Performance counters on
    input device check on
    Actions configured
Netfilter messages via NETLINK v0.30.
nf_conntrack version 0.5.0 (846 buckets, 3384 max)
ctnetlink v0.93: registering with nfnetlink.
nf_conntrack_rtsp v0.6.21 loading
matchsize=264
xt_time: kernel timezone is -0000
IPVS: Registered protocols ()
IPVS: Connection hash table configured (size=4096, memory=32Kbytes)
IPVS: ipvs loaded.
GRE over IPv4 demultiplexor driver
gre: can't add protocol
nf_nat_rtsp v0.6.21 loading
ip_tables: (C) 2000-2006 Netfilter Core Team, Type=Restricted Cone
arp_tables: (C) 2002 David S. Miller
TCP cubic registered
NET: Registered protocol family 10
NET: Registered protocol family 17
Bridge firewalling registered
L2TP core driver, V2.0
PPPoL2TP kernel driver, V2.0
802.1Q VLAN Support v1.8 Ben Greear <greearb@candelatech.com>
All bugs added by David S. Miller <davem@redhat.com>
Warning: unable to open an initial console.
Freeing unused kernel memory: 4288k freed
Algorithmics/MIPS FPU Emulator v1.5
Welcome to
     __   ___  _____  _____   _  _______ ______  _____  _   ___
    |  \ /   ||  ___||  __ \ | ||  __  ||__  __||  ___|| | /  /
    |   ^    || |__  | |  \ \| || |  | |  | |   | |__  | |/  /
    |  | |   ||  ___|| |  | || || |__| |  | |   |  ___||    \
    |  | |   || |___ | |__/ /| ||  __  |  | |   | |___ | |\  \
    |__| |___||_____||_____/ |_||_|  |_|  |_|   |_____||_| \__\

		        = Everyday Genius =

GobiNet: 2011-07-29-1026
usbcore: registered new interface driver GobiNet
[CC] [12] init daemon...
cat: can't open '/var/run/LteManager.status': No such file or directory
Password for 'admin' changed

##### disable 1st wireless interface #####

##### disable 2nd wireless interface #####
rmmod: rlt_wifi: No such file or directory
insmod: rlt_wifi.ko: module not found
cat: can't open '/var/run/LteManager.status': No such file or directory
RX[0] DESC a21ec000 size = 4096
RX[1] DESC a21ed000 size = 4096
E2pAccessMode=0
cfg_mode=9
cfg_mode=9
wmode_band_equal(): Band Equal!
1. Phy Mode = 14
Country Region from e2p = ffff
2. Phy Mode = 14
3. Phy Mode = 14
AntCfgInit: primary/secondary ant 0/1
Current Temperature from BBP_R49=0xfffffff8
RT6352_TssiTableAdjust: upper_bound = 0x7F decimal: 127
RT6352_TssiTableAdjust: lower_bound = 0xFFFFFF80 decimal: -128
*** RT6352_TssiTableAdjust: G Tssi[-7 .. +7] = -128 -1 -1 -1 -128 -1 -1
 - -1 - -1 -1 -1 -1 -1 -1 -1, offset=-9, tuning=0
RT6352_TssiTableAdjust: G Tssi[-7 .. +7] = -128 -10 -10 -10 -128 -10 -10 - -10 - -10 -10 -10 -10 -10 -10 -10, offset=-9, tuning=0
mp_temperature=0x00, step = +7
E2PROM: G Tssi[-7 .. +7] = -128 -10 -10 -10 -128 -10 -10 - -10 - -10 -10 -10 -10 -10 -10 -10, offset=-9, tuning=0
ChipStructAssign(): RALINK6352 hook !
bAutoTxAgcG = 0
MCS Set = ff ff 00 00 01
APStartUp(): AP Set CentralFreq at 7(Prim=9, HT-CentCh=7, VHT-CentCh=0, BBP_BW=1)
Main bssid = e8:d1:1b:07:5a:7b
<==== rt28xx_init, Status=0
get_dev_name_prefix(): dev_idx = 0, dev_name_prefix=wds
get_dev_name_prefix(): dev_idx = 0, dev_name_prefix=wds
get_dev_name_prefix(): dev_idx = 0, dev_name_prefix=wds
get_dev_name_prefix(): dev_idx = 0, dev_name_prefix=wds
get_dev_name_prefix(): dev_idx = 0, dev_name_prefix=apcli
RTMPDrvOpen(1):Check if PDMA is idle!
RTMPDrvOpen(2):Check if PDMA is idle!
build time =
20141115060606a
rom patch for E3 IC

platform =
ALPS
hw/sw version =
��
patch version =

FW Version:0.0.00 Build:1
Build Time:201507311614____
fw for E3 IC
RX[0] DESC a278b000 size = 4096
RX[1] DESC a278c000 size = 4096
E2pAccessMode=0
cfg_mode=14
cfg_mode=14
wmode_band_equal(): Band Not Equal!
1. Phy Mode = 49
drivers/net/wireless/rlt_wifi_ap/../rlt_wifi_p1/chips/mt76x2.c:2844 assert (ad->TxPower[choffset].Channel == 42)failed
Country Region from e2p = ffff
2. Phy Mode = 49
3. Phy Mode = 49
andes_pci_fw_init
0x1300 = 00073200
AntCfgInit: primary/secondary ant 0/1
andes_load_cr:cr_type(2)
ChipStructAssign(): MT76x2 hook !
bAutoTxAgcG = 0
MCS Set = ff ff 00 00 01
mt76x2_bbp_adjust():rf_bw=2, ext_ch=1, PrimCh=157, HT-CentCh=159, VHT-CentCh=155
TX0 power compensation = 0x38
TX1 power compensation = 0x38
APStartUp(): AP Set CentralFreq at 155(Prim=157, HT-CentCh=159, VHT-CentCh=155, BBP_BW=2)
mt76x2_calibration(channel = 155)
Main bssid = e8:d1:1b:07:5a:7c
mt76x2_reinit_agc_gain:original agc_vga0 = 0x5c, agc_vga1 = 0x5c
mt76x2_reinit_agc_gain:updated agc_vga0 = 0x5c, agc_vga1 = 0x5c
mt76x2_reinit_hi_lna_gain:original hi_lna0 = 0x27, hi_lna1 = 0x27
mt76x2_reinit_hi_lna_gain:updated hi_lna0 = 0x27, hi_lna1 = 0x27
original vga value(chain0) = 5c
original vga value(chain1) = 5c
<==== rt28xx_init, Status=0
get_dev_name_prefix(): dev_idx = 1, dev_name_prefix=wdsi
get_dev_name_prefix(): dev_idx = 1, dev_name_prefix=wdsi
get_dev_name_prefix(): dev_idx = 1, dev_name_prefix=wdsi
get_dev_name_prefix(): dev_idx = 1, dev_name_prefix=wdsi
get_dev_name_prefix(): dev_idx = 1, dev_name_prefix=apclii
RTMPDrvOpen(1):Check if PDMA is idle!
RTMPDrvOpen(2):Check if PDMA is idle!
ifconfig: ioctl 0x8913 failed: No such device
brctl: bridge br0: No such device or address
##### configVIF #####
Raeth v3.1 (Tasklet)

phy_tx_ring = 0x014d2000, tx_ring = 0xa14d2000

phy_rx_ring0 = 0x014d3000, rx_ring0 = 0xa14d3000
SMACCR1 -- : 0x0000e8d1
SMACCR0 -- : 0x1b075a79
CDMA_CSG_CFG = 81000000
GDMA1_FWD_CFG = 20710000
vconfig: ioctl error for rem: No such device
vconfig: ioctl error for rem: No such device
rmmod: 8021q: No such file or directory
device eth2 entered promiscuous mode
##### config Ralink ESW vlan partition (LLLLW) #####
usb 1-1: new high speed USB device using rt3xxx-ehci and address 2
switch reg write offset=2004, value=ff0003
switch reg write offset=2104, value=ff0003
switch reg write offset=2204, value=ff0003
switch reg write offset=2304, value=ff0003
switch reg write offset=2404, value=ff0003
switch reg write offset=2504, value=ff0003
switch reg write offset=2010, value=810000c0
switch reg write offset=2110, value=810000c0
switch reg write offset=2210, value=810000c0
switch reg write offset=2310, value=810000c0
switch reg write offset=2410, value=810000c0
switch reg write offset=2510, value=810000c0
switch reg write offset=2610, value=81000000
switch reg write offset=2710, value=81000000
switch reg write offset=2604, value=20ff0003
switch reg write offset=2704, value=20ff0003
Special Tag Disabled
switch reg write offset=2610, value=81000000
switch reg write offset=2014, value=10001
switch reg write offset=2114, value=10001
switch reg write offset=2214, valucdc_acm 1-1:1.2: This device cannot do calls on its own. It is not a modem.
e=10001
switch reg write offset=2314, value=10001
switch reg write offset=2414cdc_acm 1-1:1.2: ttyACM0: USB ACM device
, value=10002
switch reg write offset=2514, value=10001
REG_ESW_WT_MAC_ATC is 0x7ff0002

done.
cdc_acm 1-1:1.4: This device cannot do calls on its own. It is not a modem.
cdc_acm 1-1:1.4: ttyACM1: USB ACM device
GobiNet 1-1:1.6: usb0: register 'GobiNet' at usb-rt3xxx-1, GobiNet Ethernet Device, e2:d4:81:3d:2f:ff
device ra0 entered promiscuous mode
device eth2.1 entered promiscuous mode
device rai0 entered promiscuous mode

##### enable 2nd wireless interface #####
cat: can't open '/var/run/LteManager.status': No such file or directory
lted.sh (at+cmd) run ...
cat: can't open '/var/run/LteManager.status': No such file or directory
cat: can't open '/var/run/LteManager.status': No such file or directory
data=[ up lted.sh set_lte_led]
del_reg():/var/run/.ip_up.reg, lted.sh set_lte_led
br0: port 3(rai0) entering listening state
br0: port 3(rai0) entering listening state
br0: port 2(eth2.1) entering listening state
br0: port 2(eth2.1) entering listening state
br0: port 1(ra0) entering listening state
br0: port 1(ra0) entering listening state
add_reg():/var/run/.ip_up.reg, lted.sh set_lte_led
ifconfig: ioctl 0x8914 failed: Cannot assign requested address
ifconfig: ioctl 0x8914 failed: Cannot assign requested address
cat: can't open '/var/run/LteManager.status': No such file or directory
cat: can't open '/var/run/LteManager.status': No such file or directory
route: ioctl 0x890c failed: No such process
killall: rt2860apd: no process killed
route: ioctl 0x890c failed: No such process
killall: rtinicapd: no process killed
killall: wapid: no process killed
iptables v1.4.10: Couldn't load target `firewall':File not found

Try `iptables -h' or 'iptables --help' for more information.
Mason : *pbLinkState = false (17:30:24)
 Type 0x10 : result=65494 callendreason[0]=36 callendreason[1]=101
Type 0x11 : result=65494 callendreasontype[0]=0 callendreasontype[1]=0 callendreasontype[2]=0 callendreasontype[3]=0
iptables: No chain/target/match by that name.
iptables v1.4.10: Couldn't load target `firewall_input':File not found

Try `iptables -h' or 'iptables --help' for more information.
iptables: No chain/target/match by that name.
creating qcqmi0
++ /sbin/automount_lte.sh: qcqmi0, qcqmi0, add,
=====================
usb device: usbdev1.2
path:
vendor: 05c6
product: 9026
manufacturer: Askey LTE module
iptables v1.4.10: Couldn't load target `mac_filter':File not found

Try `iptables -h' or 'iptables --help' for more information.
iptables: No chain/target/match by that name.
iptables v1.4.10: Couldn't load target `ipport_filter':File not found

Try `iptables -h' or 'iptables --help' for more information.
iptables: No chain/target/match by that name.
iptables v1.4.10: Couldn't load target `web_filter':File not found

Try `iptables -h' or 'iptables --help' for more information.
iptables: No chain/target/match by that name.
iptables v1.4.10: Couldn't load target `malicious_filter':File not found

Try `iptables -h' or 'iptables --help' for more information.
iptables: No chain/target/match by that name.
iptables v1.4.10: Couldn't load target `malicious_input_filter':File not found

Try `iptables -h' or 'iptables --help' for more information.
iptables: No chain/target/match by that name.
iptables v1.4.10: Couldn't load target `port_trigger':File not found

Try `iptables -h' or 'iptables --help' for more information.
iptables: No chain/target/match by that name.
iptables v1.4.10: Couldn't load target `trigger_prerouting':File not found

Try `iptables -h' or 'iptables --help' for more information.
iptables: No chain/target/match by that name.
cat: can't open '/var/run/LteManager.status': No such file or directory
firewall.c:iptablesIPPortFilterRun:529:Warning: can't find "IPPortFilterRules" in flash.
firewall.c:iptablesMACFilterRun:449:Warning: can't find "MacFilteringRules" in flash.
cat: can't open '/var/run/LteManager.status': No such file or directory
cat: can't open '/var/run/LteManager.status': No such file or directory
cat: can't open '/var/run/LteManager.status': No such file or directory
sh: /bin/super_dmz: not found
iptables v1.4.10: Couldn't load target `port_forward':File not found

Try `iptables -h' or 'iptables --help' for more information.
iptables: No chain/target/match by that name.
iptables: No chain/target/match by that name.
iptables v1.4.10: Couldn't load target `port_forward':File not found

Try `iptables -h' or 'iptables --help' for more information.
iptables: No chain/target/match by that name.
iptables: No chain/target/match by that name.
iptables v1.4.10: Couldn't load target `MINIUPNPD':File not found

Try `iptables -h' or 'iptables --help' for more information.
iptables v1.4.10: Couldn't load target `DMZ':File not found

Try `iptables -h' or 'iptables --help' for more information.
iptables: No chain/target/match by that name.
iptables v1.4.10: Couldn't load target `vpn_passthrough':File not found

Try `iptables -h' or 'iptables --help' for more information.
iptables: No chain/target/match by that name.
30
0
180
0
HTTP/1.0 302 Redirect

Pragma: no-cache

Cache-Control: no-cache

Content-Type: text/html

Location: (null)



my.pool.ntp.org: Unknown host
syslogd: illegal option -- C
BusyBox v1.12.1 (2017-10-16 17:28:06 CST) multi-call binary

Usage: syslogd [OPTION]...

cat: can't open '/var/run/LteManager.status': No such file or directory
get_ipaddr: ioctl SIOCGIFADDR error for usb0
internet.c:ripd_restart:435:The WAN IP is still undeterminated...
cat: can't open '/var/run/LteManager.status': No such file or directory
0
HTTP/1.0 302 Redirect

Pragma: no-cache

Cache-Control: no-cache

Content-Type: text/html

Location: (null)



cat: can't open '/var/run/LteManager.status': No such file or directory
Power LED On 33
data=[ up start_voip.sh]
[auto fota] Start session connection after 4267 seconds
del_reg():/var/run/.port_up.reg, start_voip.sh
cat: can't open '/var/run/LteManager.status': No such file or directory
init: can't log to /dev/tty5

starting pid 4531, tty '/dev/ttyS1': '/sbin/getty 57600 ttyS1'
no
osal_kernel: module license 'D2 Technologies, Inc. Proprietary Software' taints kernel.
Disabling lock debugging due to kernel taint
[KEYMGR] Starting...
osal_module.c:39 OSAL module_init OK

lkm.c 178: devname /dev/d2vtspr

/dev/d2vtspr registered successfuly @ 249.



ralink login:

========
vPort Release +D2Tech+ VPORT  WANG2_R_1_6_11
========

               D2 Technologies
      _   _  __
     / | '/  /_  _  /_ _  _  /_  _  ._   _
    /_.'/_  //_'/_ / // //_///_//_///_'_\
                                _/

       Unified Communication Products

                 www.d2tech.com

[keymgr] Bolt new board rev 5(RED RSSI LED)
vapp_init.c:621 - hostname_ptr=192.168.1.123

vapp_init.c:661 VAPP hostname 192.168.1.123 ('192.168.1.123')

vapp_init.c:663 VAPP hostname 192.168.1.123 (hbo c0a8017b)


_VAPP_initSetupSystem 767 - flashTmo = 5

_VAPP_initSetupSystem 1008 - MGMT port = 10000
Set reg status: Unregistered
vapp_init: uname00= not set infc=0 appr=0
vapp_init: - forcing default uname00=000000001681920
vapp_init.c 1503: dname00 not set, defaulting to uname '000000001681920'
vapp_init.c 1622 - dtmfType = 2, coderEnable[VAPP_CODER_DTMF] = 1
vapp_init.c: 1719 UA 0 is configured with these params:
Hostname:      192.168.1.123 (hbo c0a8017b)
HostAddr:      192.168.1.123
Authname:      ********
Password:      ********
Domain:        ims.indosat.com
Realm:         ims.indosat.com
Registrar:     202.62.29.166
Proxy    :     202.62.29.166
Username[0]:   ********
Dname[0]:      ********



Channel 0: Revision Id 0xA2(0x18:0x2)

Si3217x: Channel 0 : Type = PROSLIC
si3217x : Channel 0 : Type = 24
si3217x : Channel 0 : Rev  = 2
Si3217x: loading patch: 06182014
Si3217x: Channel 0 : VBAT Up = 58.375 v
br0: port 3(rai0) entering learning state
br0: port 2(eth2.1) entering learning state
br0: port 1(ra0) entering learning state
Si3217x: PCMStart
vapp_vtsp.c: VTSP_getVersion reports v1.4.0
IOCTL_QMI_GET_SERVICE_FILE : arg=1


===============

result=1b01

===============

IOCTL_QMI_GET_SERVICE_FILE : arg=2


===============

result=202

===============

IOCTL_QMI_GET_SERVICE_FILE : arg=3


===============

result=303

===============


             D2 Technologies, Inc.
      _   _  __
     / | '/  /_  _  /_ _  _  /_  _  ._   _
    /_.'/_  //_'/_ / // //_///_//_///_'_\
                                _/

        Unified Communication Products

               www.d2tech.com

        +D2Tech+ VTSP_RT WANG2_R_1_6_11

+D2Tech+ VTSP_RT WANG2_R_1_6_11

+D2Tech+

+D2Tech+

+D2Tech+ comm trunk-comm src-svn: 4647 d2tools-svn: 4647

+D2Tech+

+D2Tech+

+D2Tech+

+D2Tech+

+D2Tech+

+D2Tech+

+D2Tech+ tone M24KEC4_B_1_1-tone_1_2 src-svn: 225 d2tools-svn: 3454

+D2Tech+

+D2Tech+

+D2Tech+

+D2Tech+
_VHW_start 874 Start the TASKLET mode

[LTE] -> LTE module found.
Set call status: Idle
[LTE] -> No SIM card.
br0: topology change detected, propagating
br0: port 3(rai0) entering forwarding state
br0: topology change detected, propagating
br0: port 2(eth2.1) entering forwarding state
br0: topology change detected, propagating
br0: port 1(ra0) entering forwarding state
VTSPR_task 141 RealTime miss found in VTSPR tasklet mode
